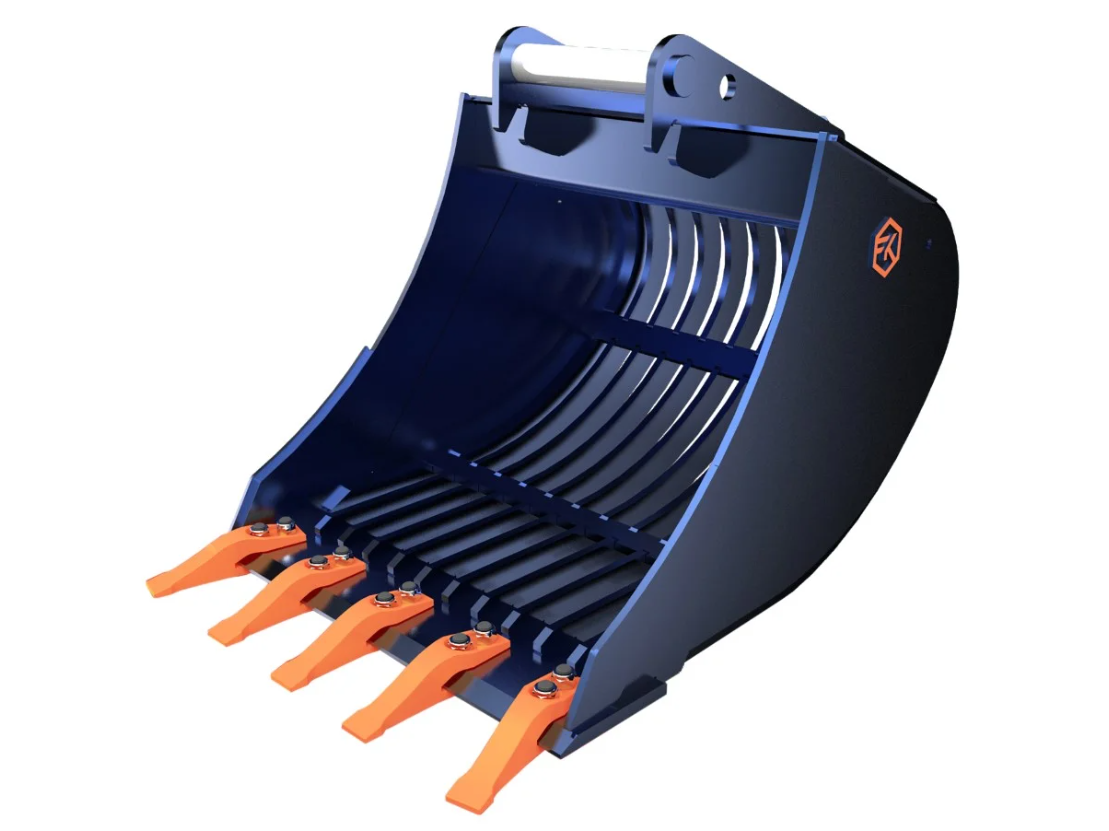

Skeleton Digging Bucket 8,5 – 10T

Price on request

Description

– teeth model – JCB 531
– shell S355 J2 – ≠ 8
– sides S355 J2 – ≠ 6 + ≠ 12
– HB400 ≠ 6 steel on side cutting edges
– cutting edge HB500 – 200×20
– frame S355 J2 – ≠ 12



Description

Index Width [mm] Weight [kg] Vol. [L] Number of teeth
EEG03 300 138 105 3
EEG04 400 155 155 3
EEG05 500 172 200 4
EEG06 600 190 255 5
EEG07 700 207 305 5
EEG08 800 224 370 5
EEG09 900 241 425 6
EEG10 1000 258 480 6
