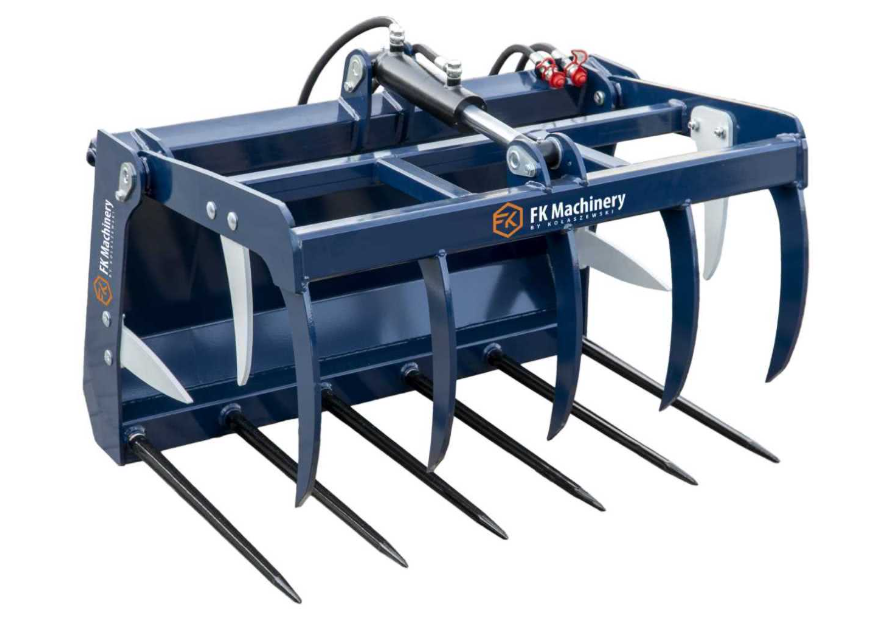

MANURE FORK WITH GRAB MINI

Price on request

Description

– solid steel grab tines
– lower tines made of forged steel (L-810)
– 2 hydraulic cylinders, width above 1.2 m
– 4 screwed-on tines as a standard
– tines reinforced with tapered bushings

Options

– pressure relief valve – VMP
– forged tines in the grab

Description

Index Width [cm] Weight [kg] Capacity [m³] Number of teeth
SFWG90 90 155 0,36 4/5
SFWG110 110 170 0,44 5/6
SFWG120 120 195 0,48 6/7
SFWG140 140 210 0,56 7/8
SFWG150 150 220 0,60 7/8
SFWG170 170 233 0,68 8/9
