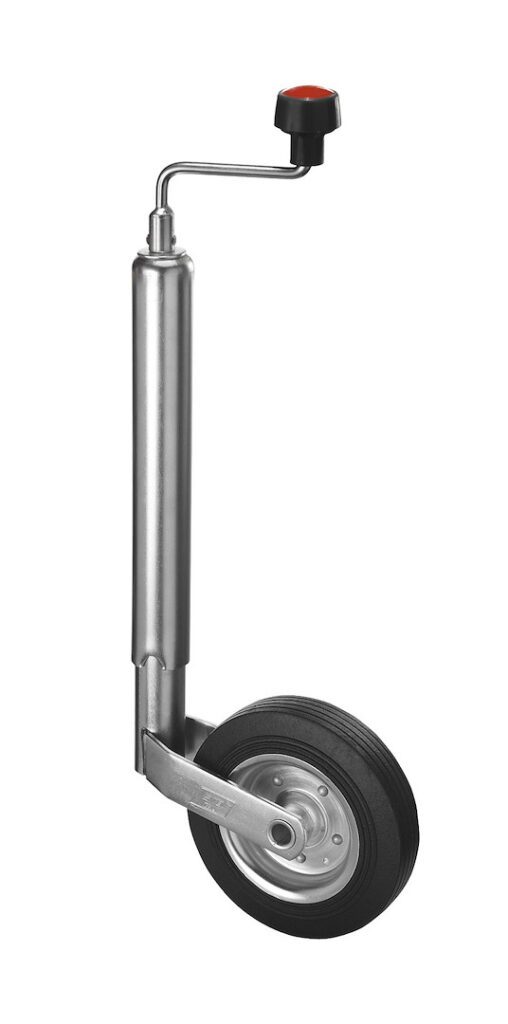

Designed for caravans and car trailers and for construction machinery.
Model
| FC242 | FC242S | FC241 | FC242S | FC241 | FC241S | FC249 | FC249S |
| NOTE | Metal rim | Metal rim | Plastic rim | Metal rim | Plastic rim | Plastic rim | Metal rim | Metal rim |
| Outer tube (mm) | Ø 48 | Ø 48 | Ø 48 | Ø 48 | Ø 48 | Ø 48 | Ø 48 | Ø 48 |
| Screw stroke (mm ±10) | 190 | 190 | 190 | 190 | 190 | 190 | 190 | 190 |
| Rubber wheels (mm) | 200 X 50 | 200 X 50 | 200 X 50 | 200 X 50 | 200 X 50 | 200 X 50 | 220 X 60 | 220 X 60 |
| Unitary weight (kg) | 4.2 | 4.2 | 4.1 | 4.2 | 4.1 | 4.1 | 7 | 7 |
| Max. static load (kg) | 150 | 150 | 100 | 150 | 100 | 100 | 150 | 150 |
| D – Total height when retracted (mm) | 575 | 630 | 575 | 630 | 575 | 630 | 585 | 640 |
