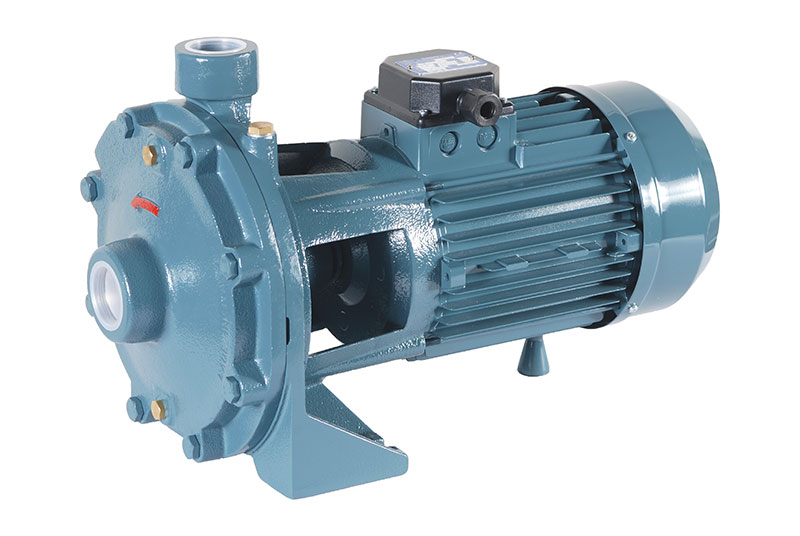

TWIN IMPELLER ELECTROPUMPS STDM

SKU: STDM Category:

THESE DOUBLE COUNTERACTING-IMPELLER PUMPS WITH AXIAL INTAKE AND UPWARD-FACING RADIAL DELIVERY ARE TYPICALLY USED IN APPLICATIONS REQUIRING HIGH DISCHARGE HEAD VALUES, PARTICULARLY IN INDUSTRIAL, AGRICULTURAL, AND DOMESTIC APPLICATIONS.

SCOPE OF APPLICATION

These double counteracting-impeller pumps with axial intake and upward-facing radial delivery are typically used in applications requiring high discharge head values, particularly in industrial, agricultural, and domestic applications. It is recommended that these pumps are used to transport only chemically pure liquids, free of foreign matter, with temperatures not exceeding 80°C.

PUMP

Horizontal-axis pump with a bronze closed impeller, pump body and base support made of G20 cast iron, AISI 304 stainless steel shaft, and a mechanical seal made of ceramic/graphite.

MOTOR

Electric, closed-type motor with an external cooling fan, IP 44 safety class, and F insulation. The standard versions of single-phase motors are fitted with thermostat-controlled safety microswitches to prevent damage to the motor. The user must provide protection for three-phase electropumps.

VOLTAGE

SIZE

1, 2, 3, 4, 5
