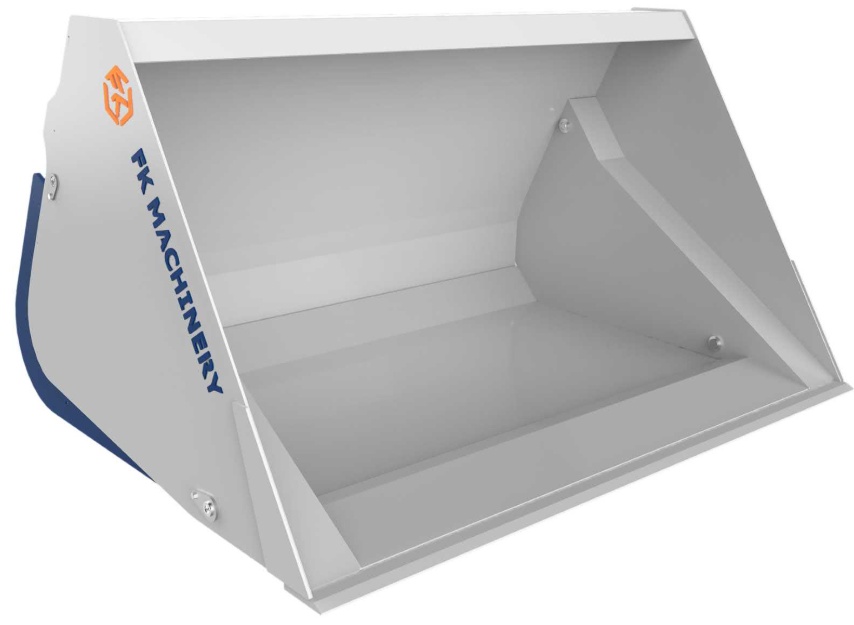

HIGH TIP BUCKET MAXI

Price on request

Description

– 200×20 HB500 cutting edge
– easy access to greasing nipples
– overcenter valve – VBCD as a standard

Options

– profiled sides increasing capacity

Description

Index Width [cm] Weight [kg] Vol. [m³] Vol. XLHTBB [m³]
XLHTB160 160 846 1,61 + 0,44 m³
XLHTB180 180 912 1,84 + 0,5 m³
XLHTB200 200 978 2,07 + 0,55 m³
XLHTB220 220 1044 2,30 + 0,62 m³
XLHTB240 240 1110 2,53 + 0,66 m³
XLHTB260 260 1176 2,76 + 0,72 m³
