HAND HELD AIR OPERATED GREASE PUMP, 500 CC, RIGID OUTLET

Price on request

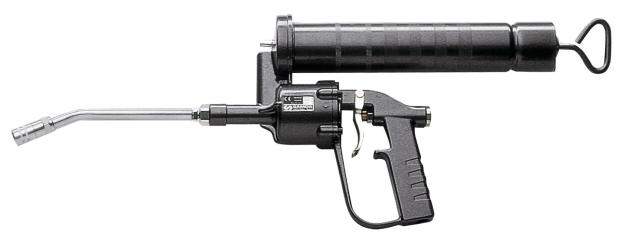

500 cc air operated grease pump. Includes a 500 cc barrel with a spring driven grease follower and rigid outlet stem with four jaw connector (PN 710 214). Three way loading: 400 g (14 oz) grease cartridges, bulk grease suction or with a grease filler pump. Supplied with filler nipple and 400 mm double steel braid reinforced outlet hose with four jaw connector (PN 140 040) and filler nipple. High pressure, 60:1 pressure ratio, air operated grease pumps. They can be connected to a compressed air line or to the air brake circuit of a commercial vehicle. Delivery: 1 cc each time the trigger is pressed. Maximum air pressure: 10 bar. Air connection thread 1/4″ BSP (F).

Description

Compatible fluids Grease
Operation type Hand Held Air Operated Pumps
Maximum outlet pressure 10 bar (145 psi)
Delivery 1 cc (0.03 oz)
Reservoir capacity 500 cc (17 oz)
