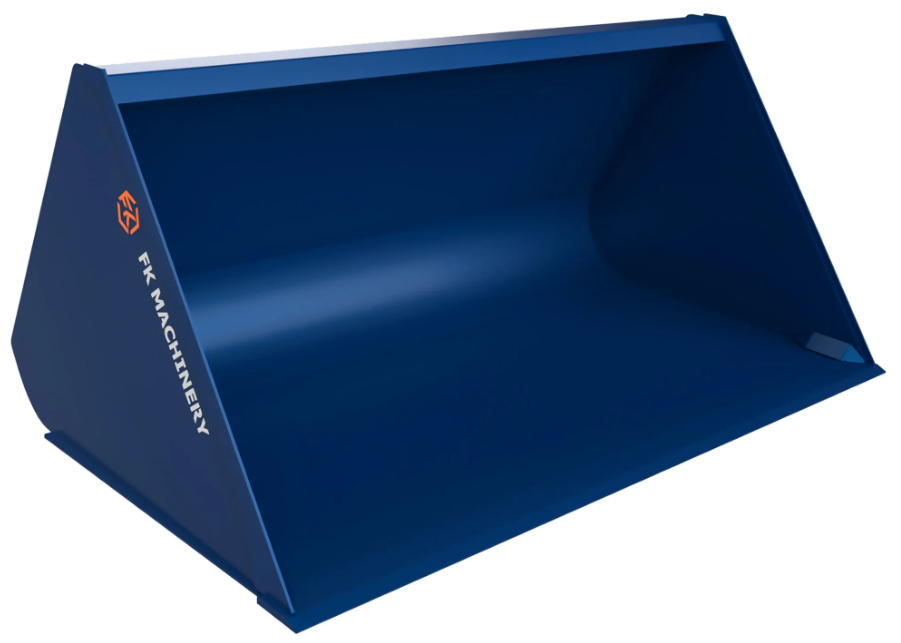

GENERAL PURPOSE LOADING BUCKET VOLUME

Price on request

Description

– 200×20 HB500 cutting edge
– reinforcements on the sides
– bottom reinforcements ≠ 10 mm
– reinforced connection of the side with the bottom

Options

– profiled sides increasing capacity
– bolt-on cutting edge HB500 200×20 double-sided

Description

Index Width [cm] Weight [kg] Vol. [m3] XLLBCB-C
XLLBC-C160 160 416 1,26 + 0,25
XLLBC-C180 180 467 1,42 + 0,28
XLLBC-C200 200 515 1,58 + 0,32
XLLBC-C220 220 561 1,74 + 0,35
XLLBC-C240 240 608 1,90 + 0,38
XLLBC-C260 260 655 2,05 + 0,41
