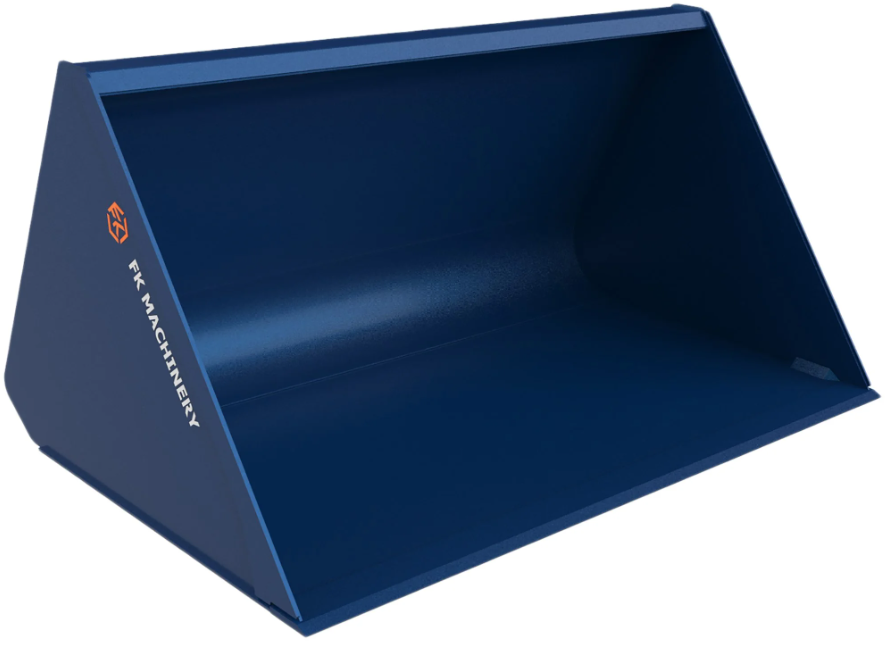

GENERAL PURPOSE LOADING BUCKET MAXI

Price on request

Description

– 200×20 HB500 cutting edge
– reinforcements on the sides
– bottom reinforcements ≠ 10 mm
– reinforced connection of the side with the bottom

Options

– profiled sides increasing capacity
– bolt-on cutting edge HB500 200×20 double-sided

Description

Index Width [cm] Weight [kg] Vol. [m3] XLLBCB-D
XLLBC-D160 160 475 1,47 + 0,29
XLLBC-D180 180 533 1,66 + 0,33
XLLBC-D200 200 591 1,84 + 0,37
XLLBC-D220 220 644 2,02 + 0,4
XLLBC-D240 240 706 2,21 + 0,44
XLLBC-D260 260 766 2,39 + 0,48
